• Compact design for pallet, perfect stacking and pallet positioning as well as stocking and refilling shelves.
• High quality steel mast and strong steel construction ensures rigidity and durability.
• High efficient pumps makes the control easier to operate.
• Metal grid protects user from lift chains.
• With safety wheel guard and brake system to ensure safety during operation.
• Manually raise and lower loads with foot pump and handle operation.

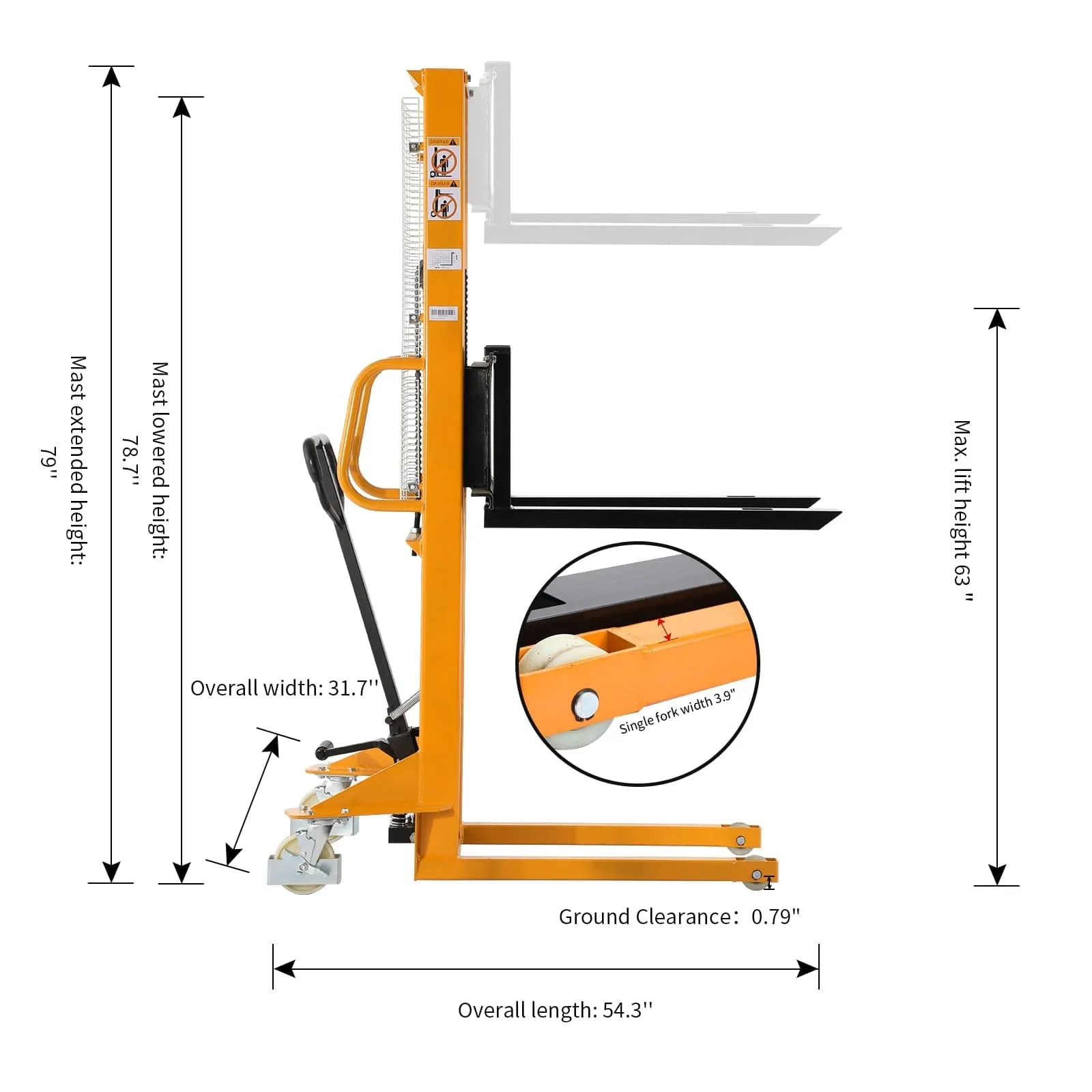

DIMENSIONS

• Overall width: 31.7''
• Overall length: 54.3''
• Load center: 19.7''
• Recommended Aisle Width: 75.4"
• Turning radius: 48.6''
• Inner legs width: 16.5''
• Outer legs width: 20.5''

MAST

• Lifting height: 63''
• Mast lowered height:78.7''
• Mast extended height: 79''

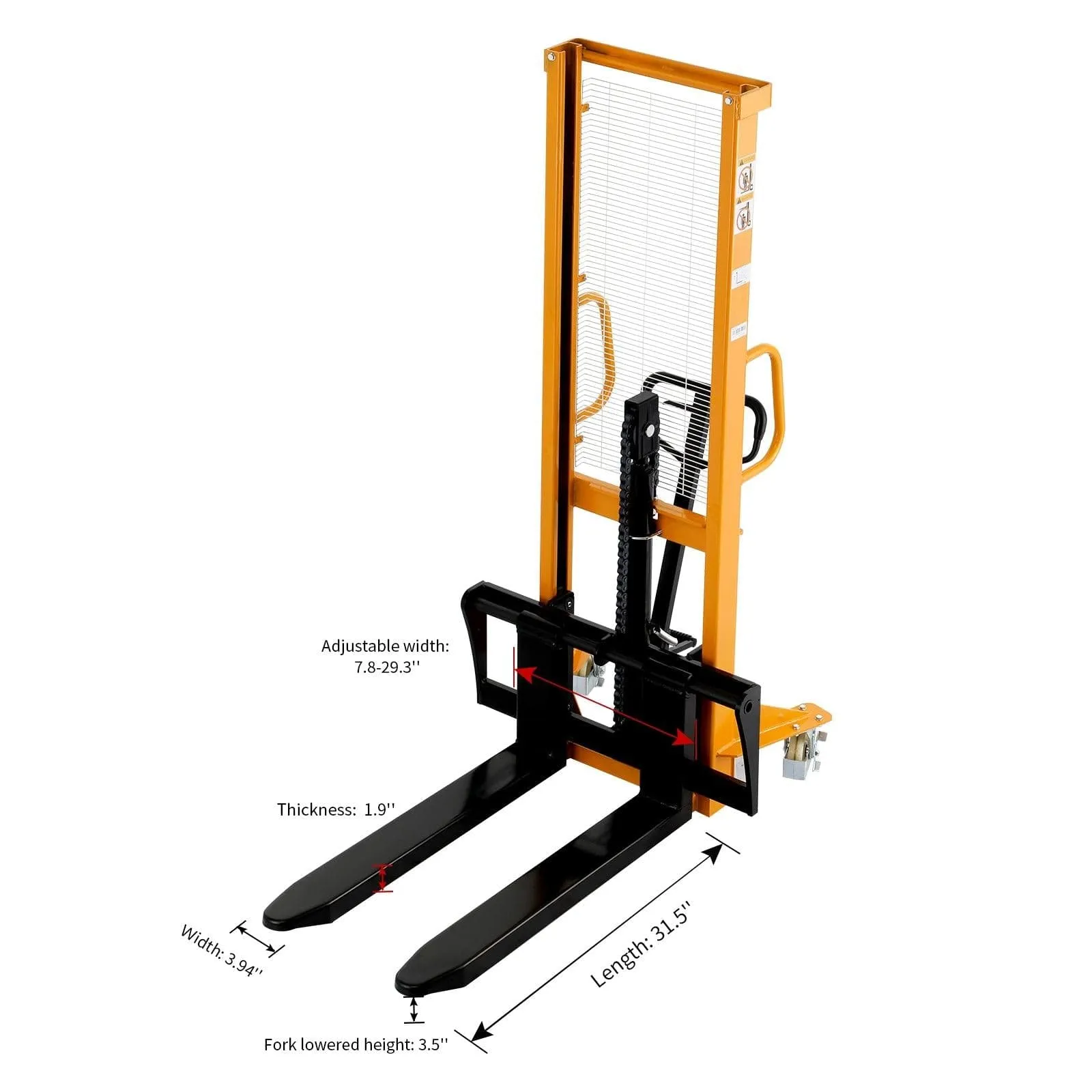

FORKS

• Adjustable width: 7.9-29.3''
• Thickness: 1.9''
• Width: 3.94''
• Length: 31.5''
• Fork lowered height: 3.5''

FEATURES

• Foot Operated Pump: Lift Height nearly 1'' per stroke.
