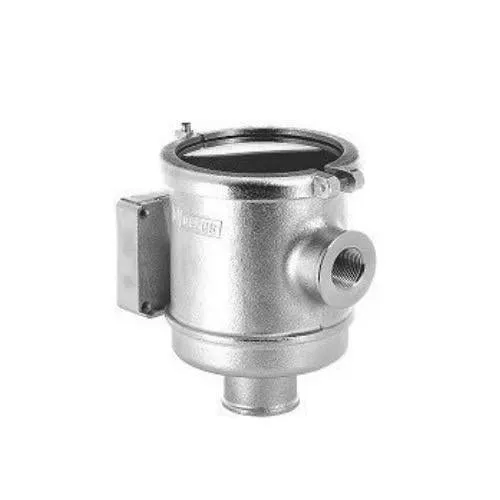

VETUS introduces a new metal filter type CWS. For installations where the cooling water strainer must be mounted close to or below the waterline and for commercial applications, these nickel plated bronze strainers are an ideal solution. The cover is removable with one screw. Tested up to 7 bar overpressure.

This filter is available in 3 different sizes, with threaded connections of G1, G1 1/4 and G1 1/2.

Specifications:

• Housing of nickel-plated bronze
• Cover of polycarbonate
• Filter element of stainless steel (AISI 316)
• Mounting bracket of nickel plated bronze
• Can be mounted near or below the waterline
• V-Quipment hose connections available separately



  Type	Matching hose connector			Hose size	Recommended input (l/min.)
  	Bronze	Brass	Brass
  CWS1	HPB1	HPM1	SLP125	25,4 mm - 1 inch	91
  CWS114	HPB11/4	HPM11/4	SLP11/438	31,8 mm - 1 1/4 inch	143
  CWS112	HPB11/2	HPM11/2	SLP11/432	38,1 mm - 1 1/2 inch	200
