EXTERNAL BRUSHLESS PUMP CONTROLLER REQUIRED

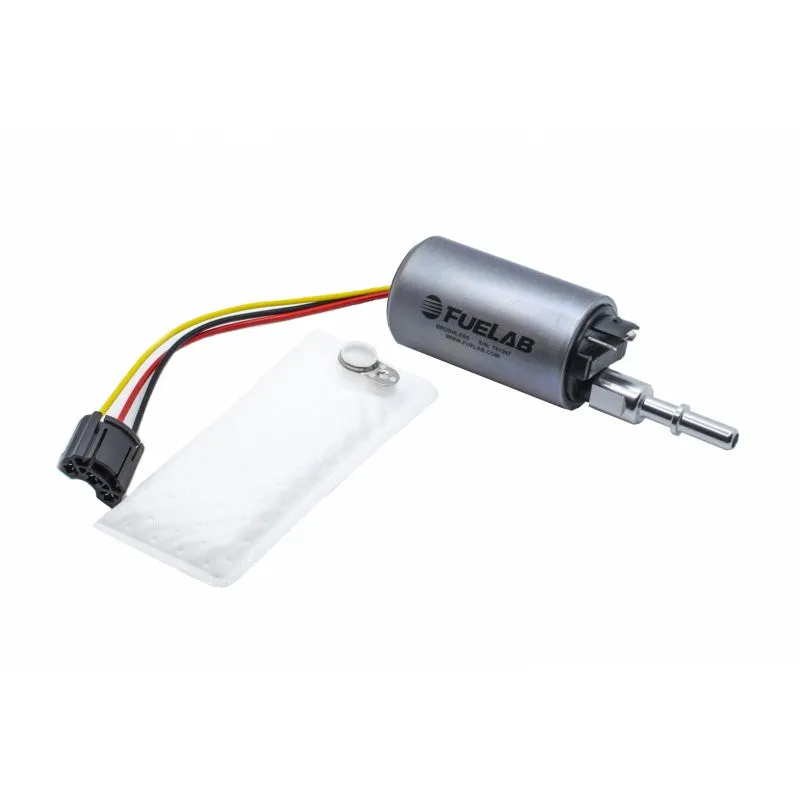

The FUELAB 496 Series brings high flow brushless technology in a compact size into the fuel tank. Designed for high flow, high pressure applications, these 350lph and 500lph aftermarket pumps are easily retro fitted into an OE pump module. Offered as a stand-alone unit or in a universal install kit, these pumps make going brushless easier than ever!

Pump Features

• Flows 350LPH @ 3bar, 13.5v (93 GPH @ 45psi)
• Compatible with gas, E85 and Methanol
• Maximum Pressure – 8.6 Bar (125psi)
• Can be used in carbureted and EFI applications
• Each fuel pump is individually tested for performance and includes flow and current draw report
• Backed by a Limited Lifetime Warranty

Construction Features

• Comes with 5/16" SAE Outlet
• 41.5mm Diameter
• Weighs 11.5oz
• Designed for in-tank use only
• Sending Unit not included
• Comes with pre-filter and wire lead harness

For control options, check these out:

• FUELAB 72001 Full Speed
• FUELAB 72002 PWM Input Signal
• FUELAB 72003 0-5v Input Signal
