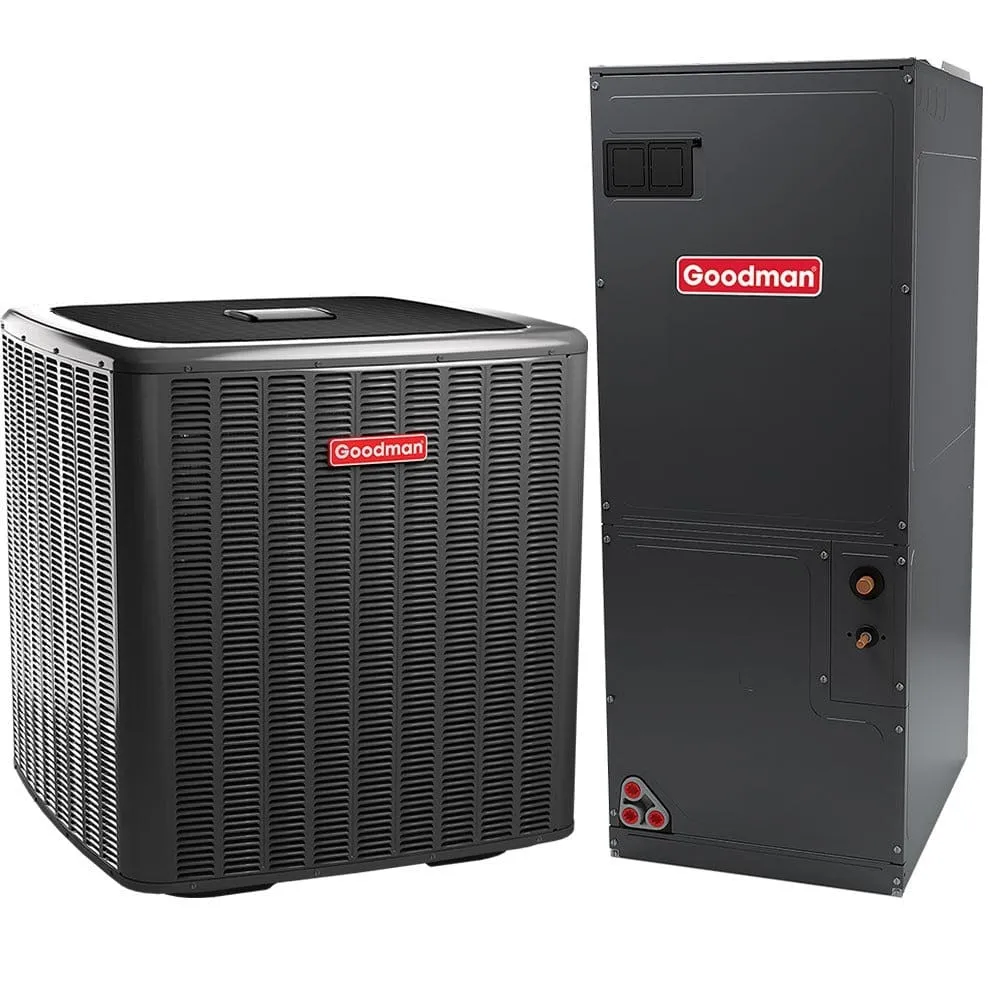

The Goodma GSX16S301Air Conditioner and AVPTC37C14 Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

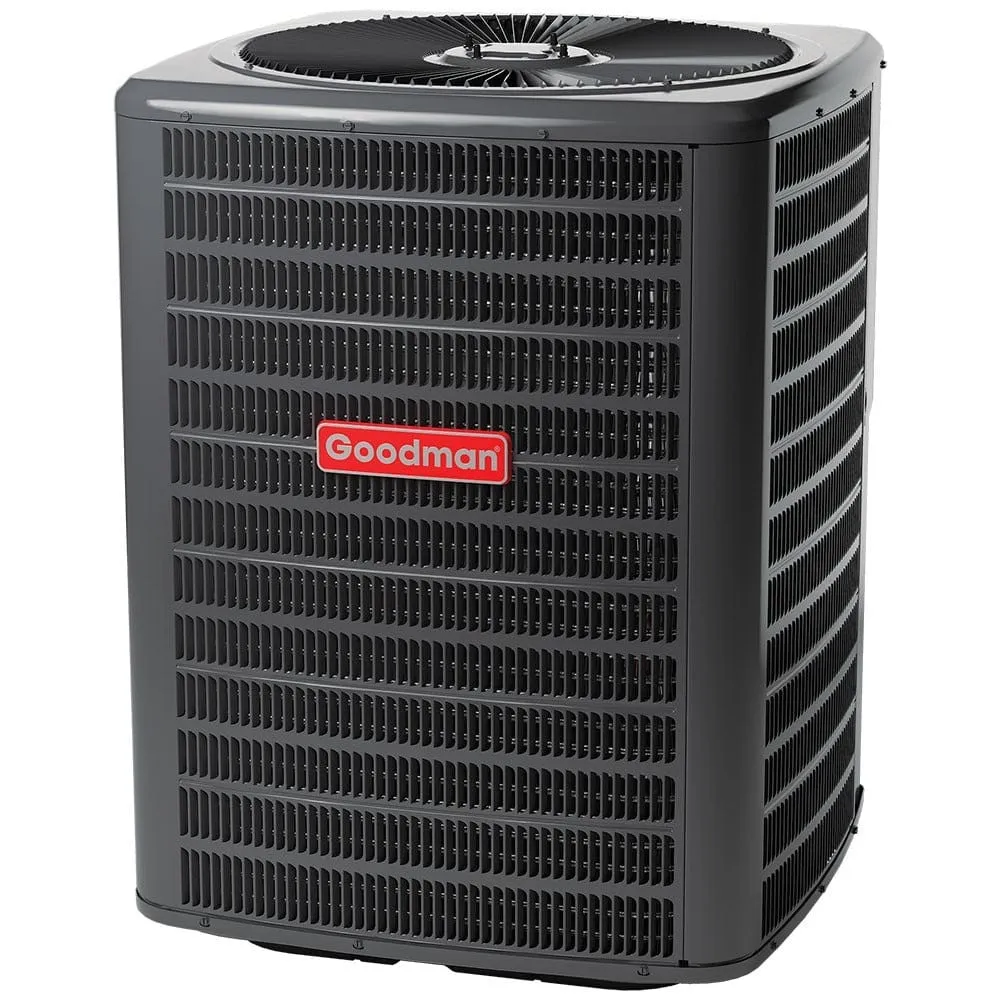

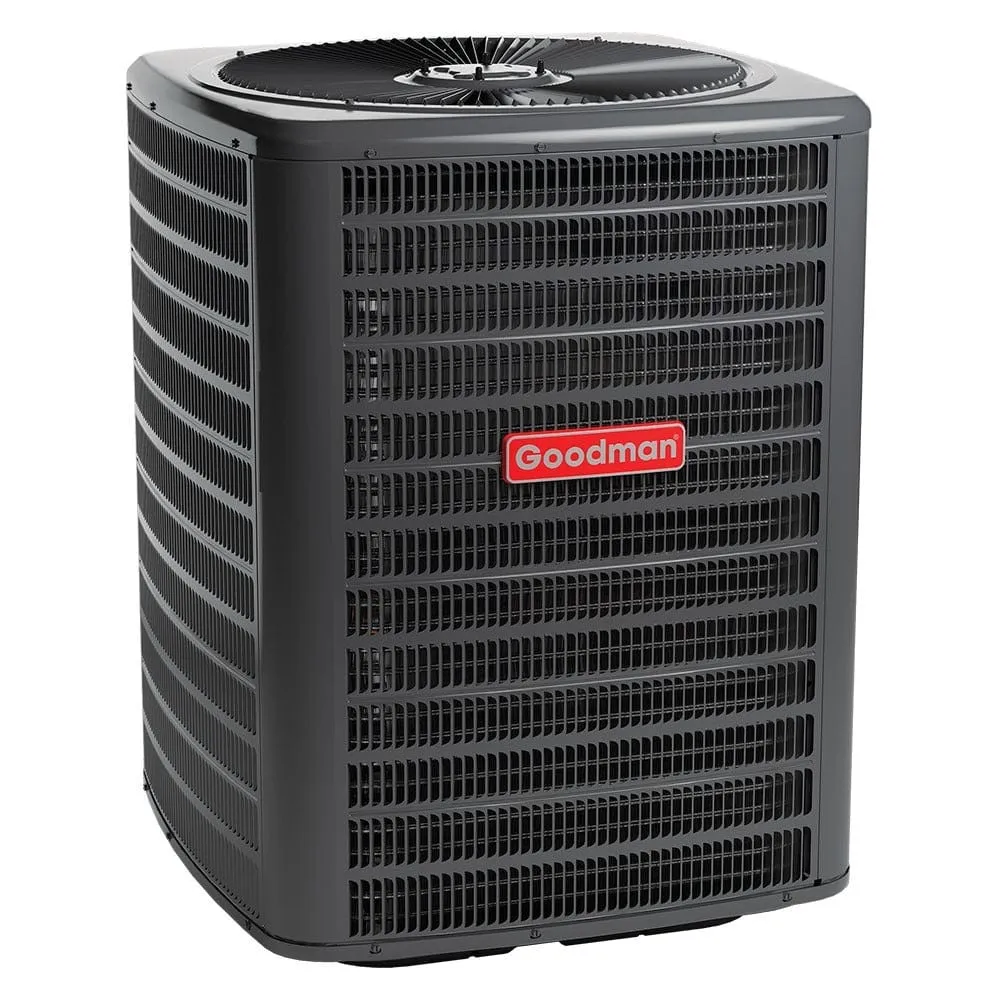

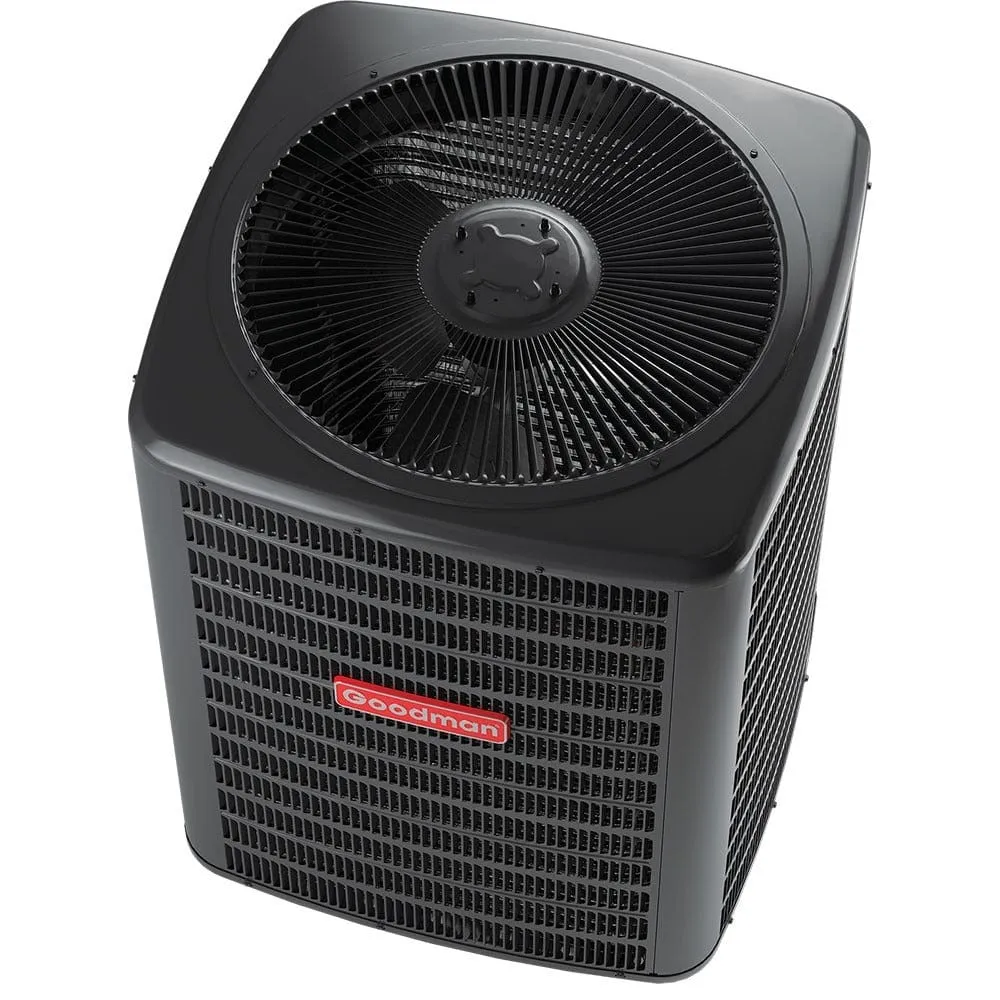

Goodman GSX16S301 Air Conditioner Features:
-
Energy-Efficient Compressor
-
Factory-Installed Filter Drier
-
Copper Tube/Aluminum Fin Coil
-
Service Valves With Sweat Connections And Easy-access Gauge Ports
-
Contactor With Lug Connection
-
Ground Lug Connection
-
AHRI Certified
-
ETL Listed

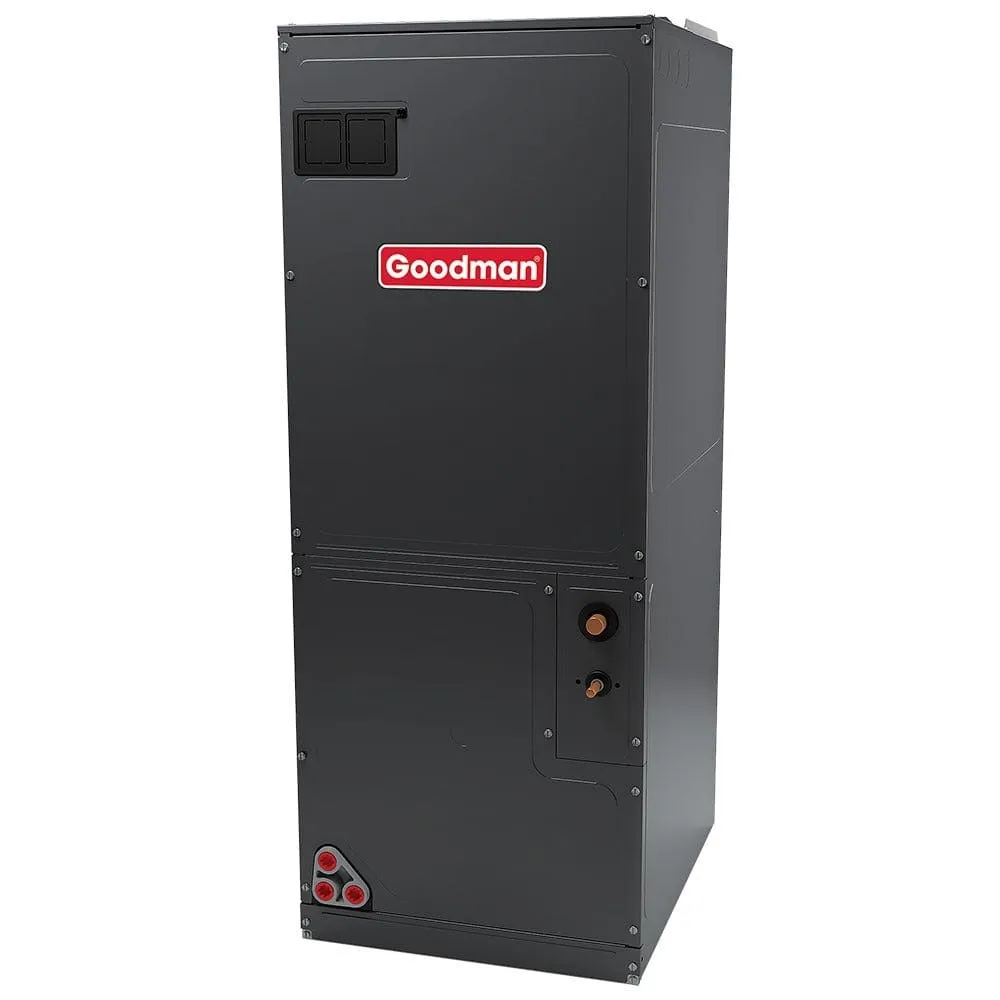

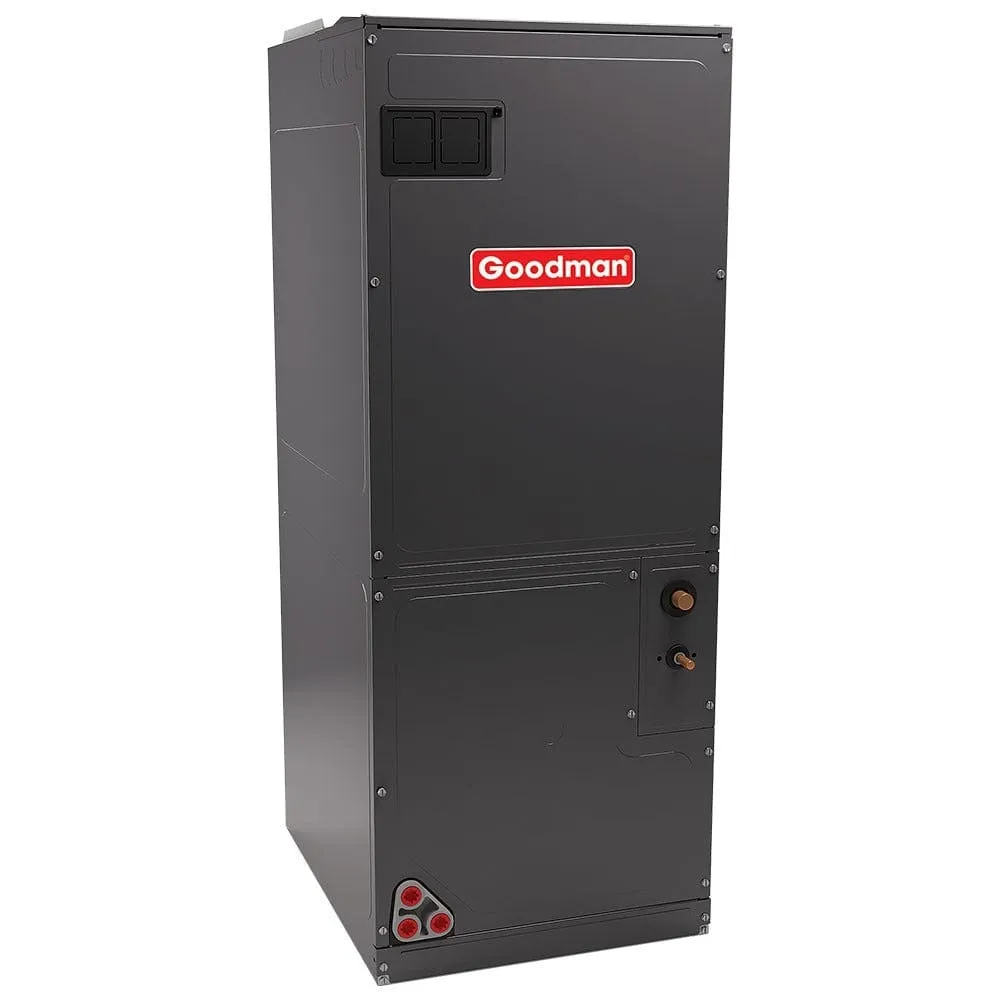

Goodman AVPTC37C14 Air Handler Features:
-
Compatible With The Comfortnet™ Communicating System Family Of Products
-
Maximum Four Low-voltage Wires Required For Operation In Communicating Mode
-
Auto Configuration Of The Airflow And Tonnage In Communicating Mode
-
In Non-communicating Mode, Up To 12 Field-selectable Airflow Settings Can Be Adjusted To Optimize The System's Cfm For Each Individual Mode Of Operation
-
R-410a Refrigerant-compatible
-
Factory-installed Thermal Expansion Valves For Cooling And Heat Pump Applications
-
Variable-speed Ecm Blower Motor
-
All-aluminum Evaporator Coil
-
Provides Constant Cfm Over A Wide Range Of Static Pressure Conditions Independent Of Duct System; Provides Low Cfm For Efficient Fan-only Operation
-
Cfm Indicator
-
Improved Humidity Control And Comfort
-
Compatible With Heat Pumps And Variable Capacity Cooling Applications
-
Built-in Coil Has Horizontal, Vertical, And Downflow Drain Pans With Secondary Drain Connections
-
AHRI Certified; ETL Listed
Specifications
| Model | GSX16S301,AVPTC37C14 |
|---|---|
| UPC | 663051534537 |
| AHRI Number | 201785803 |
| Bundle Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Bundle Cooling Capacity | 2.5 Ton |
| Bundle Cooling Efficiency | 16 SEER |
| EER | 13 |
| Goodman GSX16S301 Air Conditioner Specifications | |
| Model | GSX16S301 |
| UPC | 663051534537 |
| Avg Coverage Area | 1,250 - 1,500Sq Ft |
| Compressor | Single Stage |
| Cooling Capacity | 2.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 25 amps |
| Product Height (in) | 35.75 |
| Product Length (in) | 29 |
| Product Width (in) | 29 |
| Refrigerant | R-410a |
| Cooling Efficiency | 16 SEER |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Weight (lbs) | 167.0000 |
| Goodman AVPTC37C14 Air Handler Specifications | |
| Model | AVPTC37C14 |
| UPC | 663051521193 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Configuration | Floor Mounted |
| Blower Motor | Variable Speed |
| Cooling Capacity | 3.5 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 15 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Product Height (in) | 53.438 |
| Product Length (in) | 21 |
| Product Width (in) | 21 |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Weight (lbs) | 144.0000 |
Additional Information
Goodman GSX16S301 Air Conditioner Cabinet Features:
-

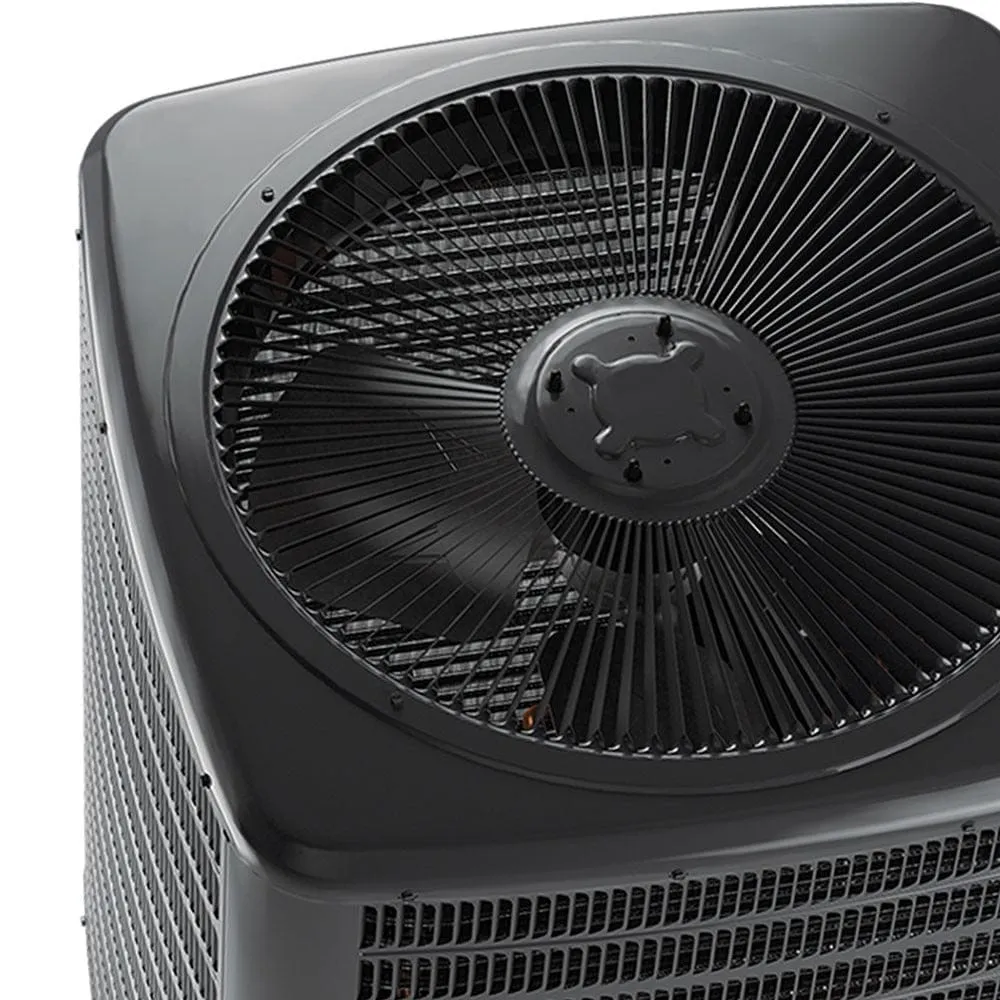

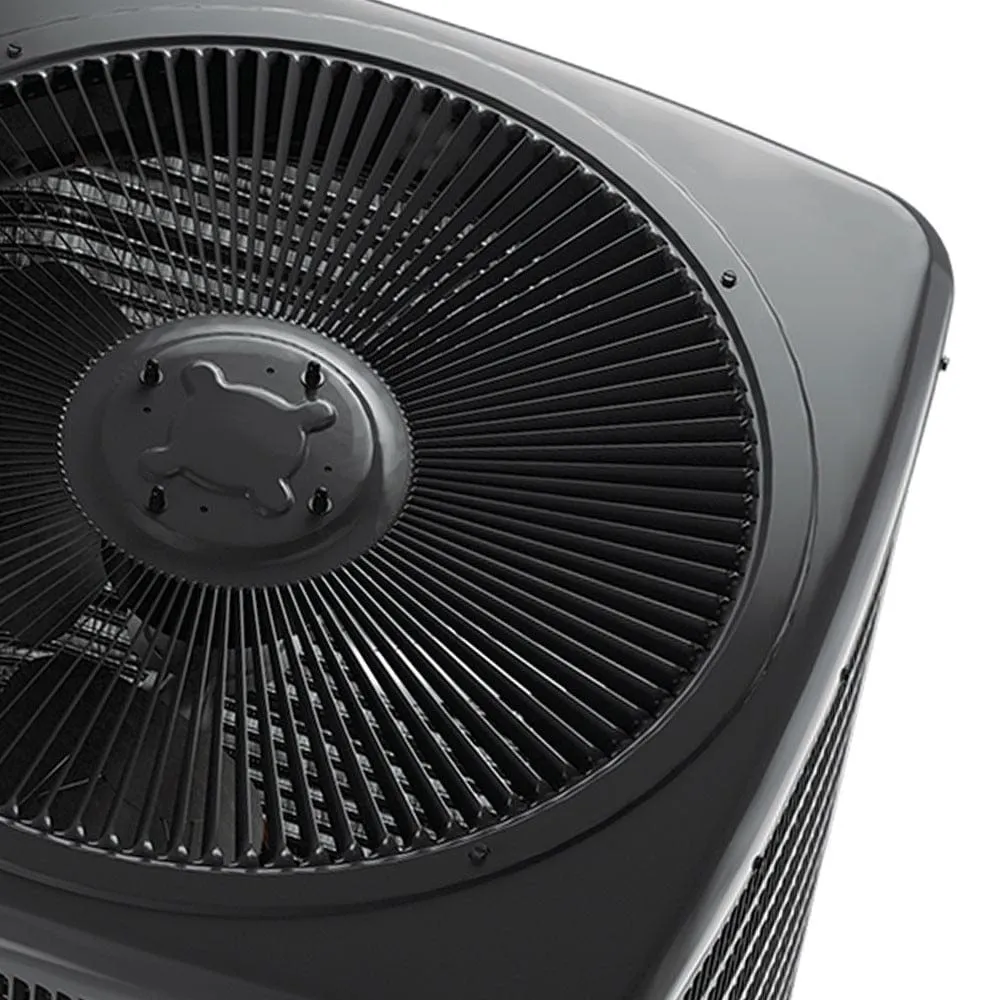

Goodman® Brand Louvered Sound Control Top Design
-
Steel Louver Coil Guard
-
Heavy-Gauge Galvanized-Steel Cabinet
-
Attractive Architectural Gray Powder-Paint Finish With 500-Hour Salt-Spray Approval
-
Top And Side Maintenance Access
-
Single-Panel Access To Controls With Space Provided For Field-installed Accessories
-
When Properly Anchored, Meets The 2010 Florida Building Code Unit Integrity Requirements For Hurricane-Type Winds (Anchor Bracket Kits Available.)

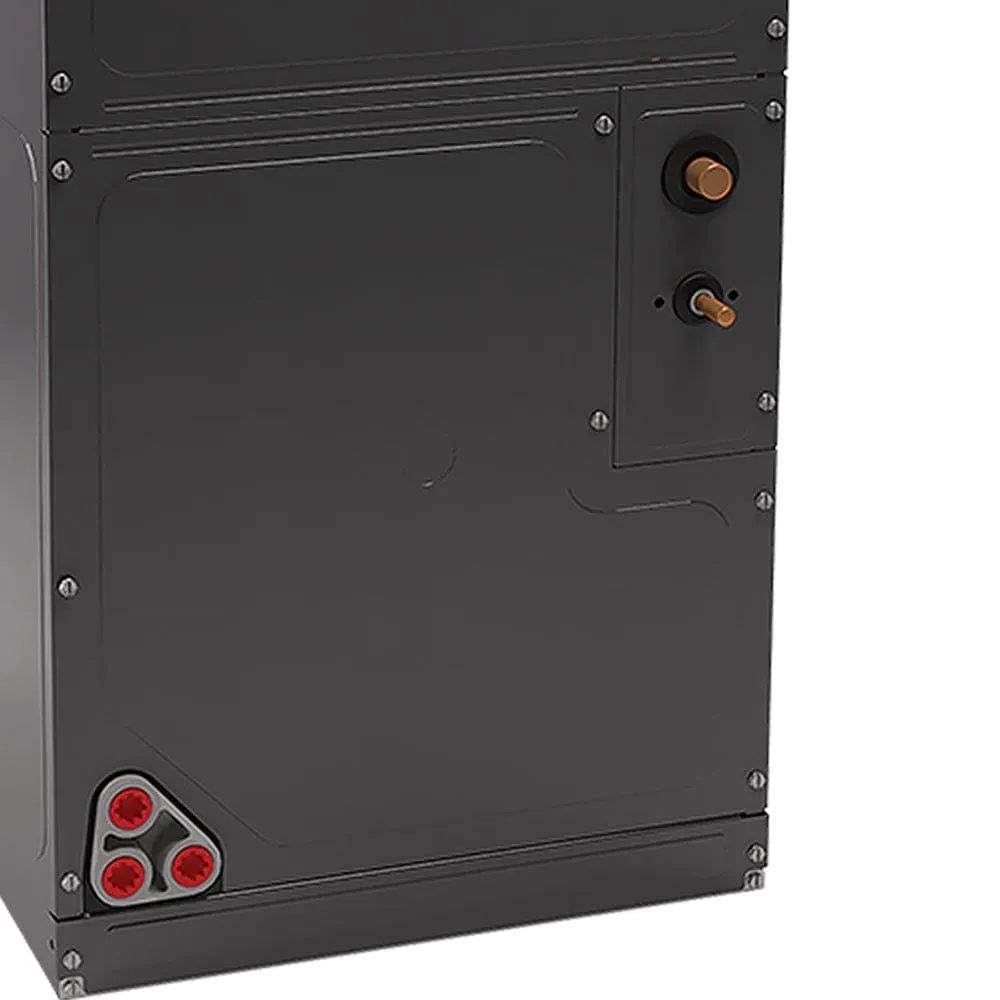

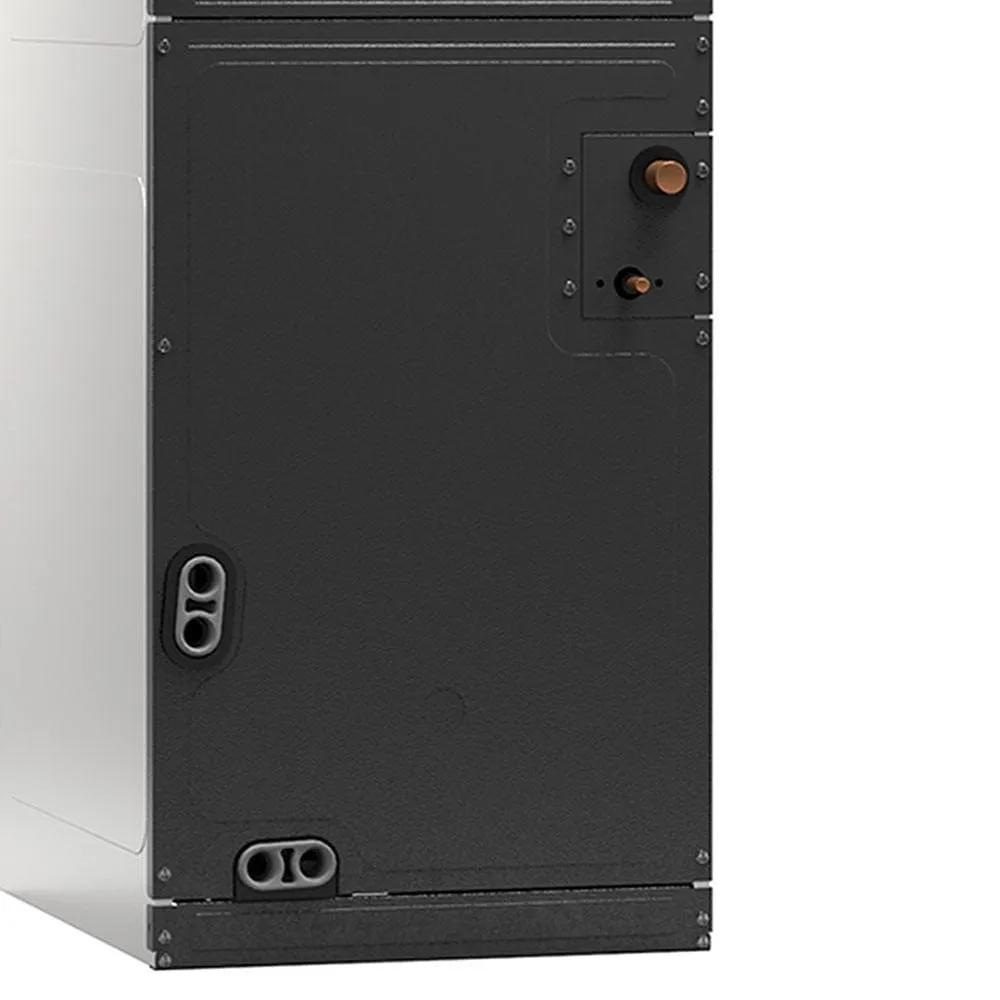

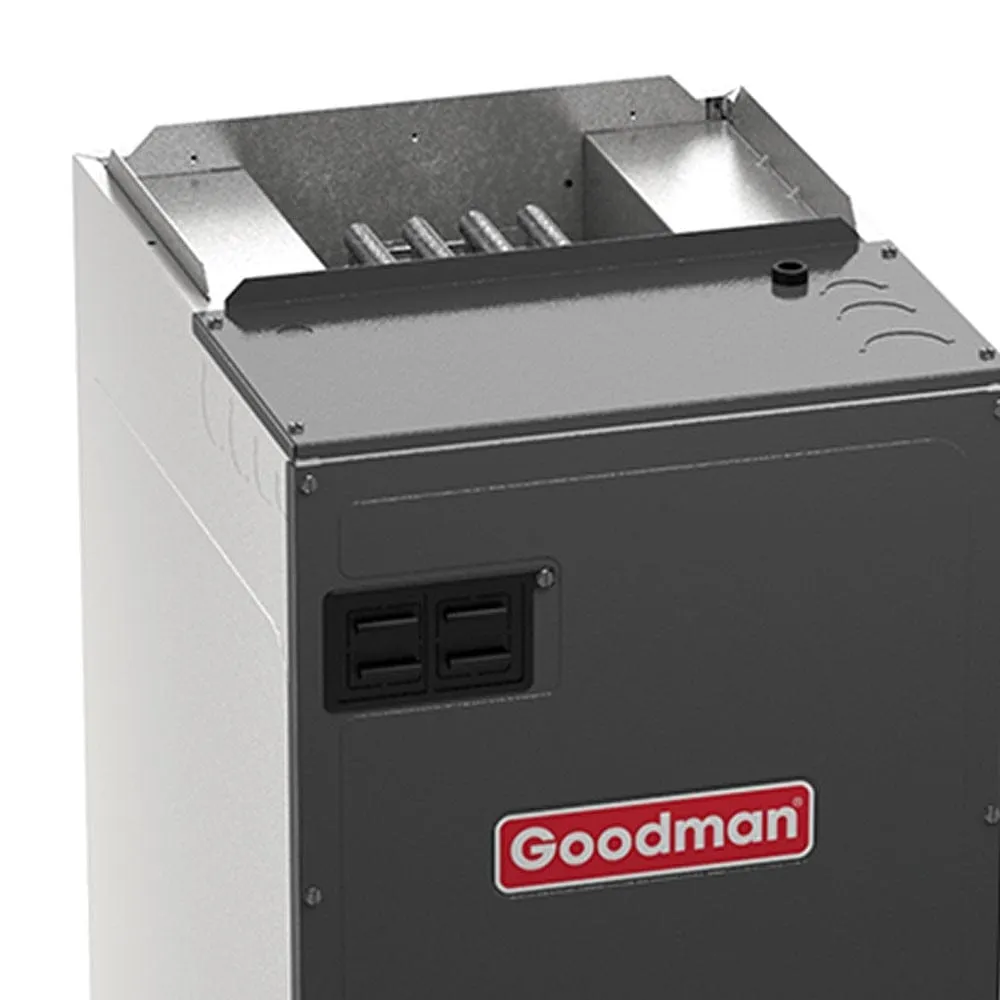

Goodman AVPTC37C14 Air Handler Cabinet Features:
-
Fully Insulated, Painted Steel Cabinet With Attractive Architectural Gray Finish
-
Compact, Versatile Upflow, Downflow, Or Horizontal Multi-position Installations
-
Low-voltage Cabinet Connections; Control Circuit Is Arranged To Permit Staging
-
Power Supply On Top; Low-voltage Entry On Top Or Side
-
Cabinet Air Leakage Less Than 2.0% At 1.0 Inch H2O When Tested In Accordance With Ashrae Standard 193
-
Cabinet Air Leakage Less Than 1.4% At 0.5 Inch H2O When Tested In Accordance With Ashrae Standard 193
-
Foil-faced Insulation Is Glued In Place And Covers The Entire Blower Case To Reduce Operating Sound And Cabinet Condensation
