Product Details
＋
Description

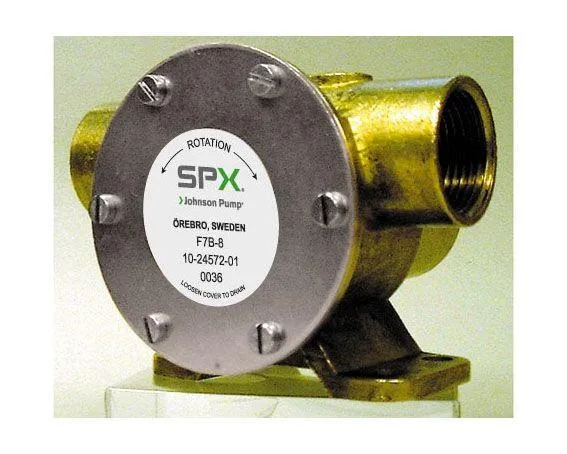

FB-8 series Multipurpose Compact Heavy Duty Bronze Impeller Pumps
Compact design, raw water resistant pumps at an attractive price. With excellent self-priming capability, these pumps are ideal for applications like engine cooling, bilge pumping, wash-down, refuelling, emergency and fire fighting. Also ideally suited for shore for emptying septic tanks, flushing, cleaning and filling water tanks.
Flexible impeller pumps provide an efficient solution to most raw water pumping needs. The pumps are self-priming and can pass fairly large solids without clogging or damaging the pumps. Designed for a number of applications on board. With an electro-magnetic clutch you will have pumping power whenever needed, at a push of a button, without being at the pump. Combined with a vacuum switch from Johnson Pump (recommended for bilge pump application), the clutch will automatically disengage whenever the pump starts priming air, thereby preventing dry running and pump damage.
Automatically controlled pumps are available in sizes from 1" to 2.1/2" (20 L/min to 625 L/min), with clutches in 12 or 24 volts. Wearing parts are easily replaceable and service kits are available for all standard models. Vacuum Switch as extra accessory.
Automatically controlled pumps are available in sizes from 1" to 2.1/2" (20 L/min to 625 L/min), with clutches in 12 or 24 volts. Wearing parts are easily replaceable and service kits are available for all standard models. Vacuum Switch as extra accessory.
Specifications
|
Pump Body: |
Bronze. Connection for vacuum switch |
|
Impeller: |
Neoprene, Nitrile (oil resistant) |
|
Shaft: |
Stainless steel |
|
Shaft seal: |
F35–F7B : Lip or Mechanical seal |
|
Cam: |
Full or reduced |
|
Pedestal: |
Cast iron with permanently lubricated double ball bearings |
|
Connection: |
3/8" – 1 1/2" BSP or NTPF on request |
