DESCRIPTION

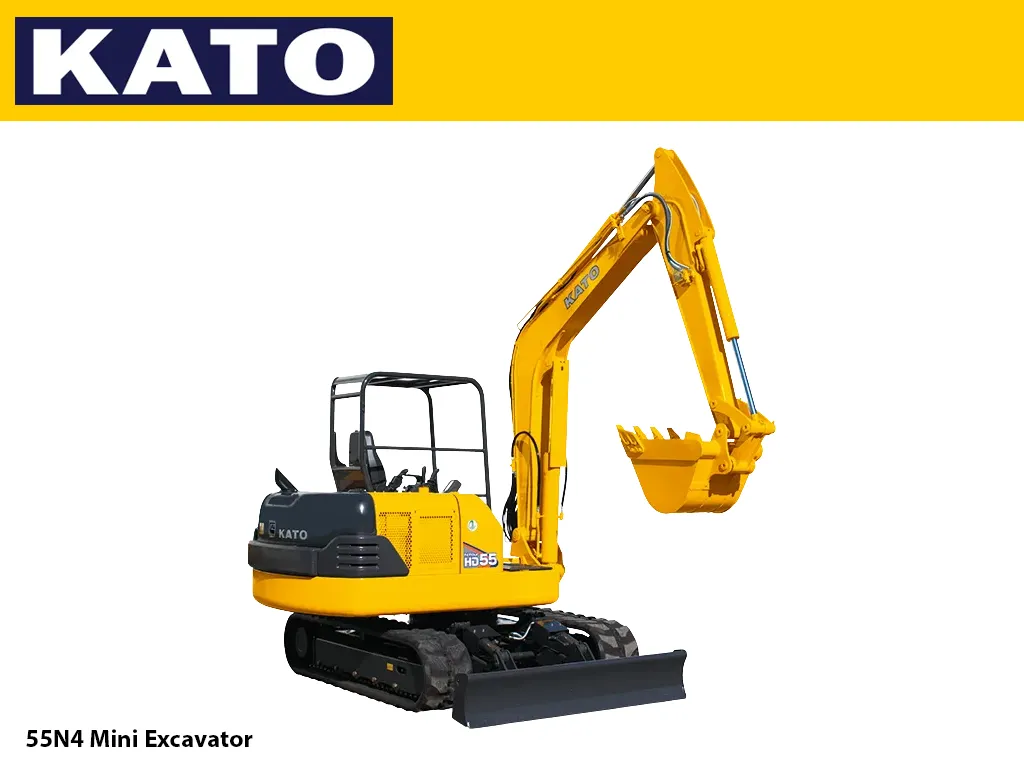

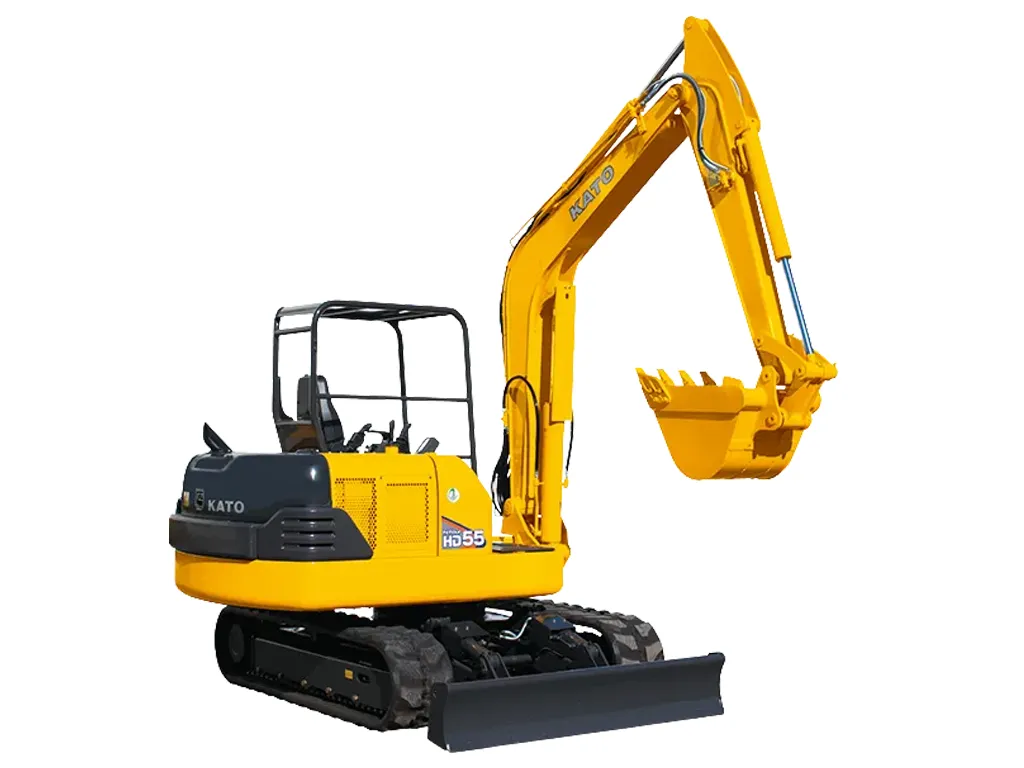

55N4 Mini Excavator
Unrivaled Power, Stability, and Durability.
The 55N4, a rugged, hard working mini excavator not only out performs any other excavator in it’s class but is more productive than a loader-backhoe when working in limited access areas. It offers easy to operate joysticks, with short lever hydraulic pilot controls with armrest for a high degree of operational responsiveness. Work can be done year round with the heated cabin (standard) or a 4-post canopy can be requested.
Operating weight of 12,733 lbs.
12’8″ digging depth
54.7 Hp water cooled diesel engine
Bucket breakout force of 11,071 lbs.
Variable displacement piston pumps
2-Speed travel
Auxiliary hydraulics standard
Hydraulic pilot controls
Standard with A-F quick change valve
Rubber or steel tracks
Standard backfill blade
ROPS Certified
SPECIFICATIONS
Specifications
| Bucket Capacity | 4.6 cu. ft |
| Bucket Width | 24″ |
| Operating Weight | 12,447 lbs (12,733 lbs) |
| Transportation Weight | 11,795 lbs. (11,955 lbs.) |
| Swing Speed | 9.0 rpm |
| Travel Speed (low/high) | 1.6/2.8 mph |
| Gradeability | 300 |
| Ground Pressure | 4.5 psi |
| Max Bucket Digging Force | 11,071 lbs. |
Engine
| Model | YANMAR 4TNV98 C Tier 4 Final |
| Rated output | 54.7 hp/2400 rpm |
| Fuel Tank Capacity | 19.8 gallons |
Boom Swing System
| Type | Boom Offset with Hydraulic Cylinder |
| Swing Angle (L / R) | 50° / 90° |
Hydraulic System
| Pressure | 2,987 psi |
| Pump* Type/ Hydraulic Flow | 2 Piston/2 Gear • 17.1 gpm x 2 12.2 gpm |
| 1st line | 29.7 gpm |
Dozer Blade
| Size | 14.5” |
| Lift Above ground / Drop Below Ground | 15” / 15” |
