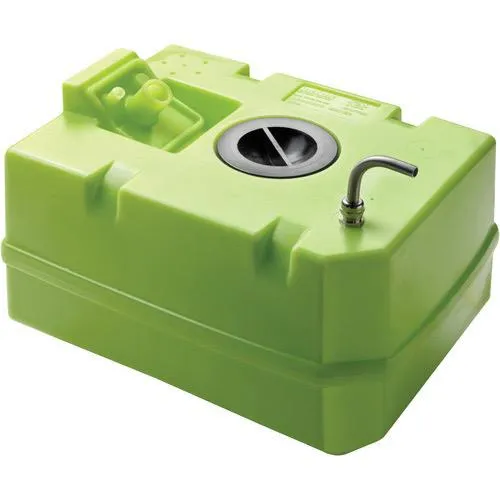

This type is made of high grade synthetic like all other VETUS rigid drinking water tanks and is supplied with all required connections which saves considerable installation time. A centre point for a SAE flange gauge sender is incorporated in the moulding together with 5 blind bolt holes.

Specifications

• Tank capacities of 40, 60 and 80 litres
• Hose connectors for filling line Ø38 mm and breather line Ø16 mm
• Rotating hose connector Ø13 mm with pick-up pipe for water suction
• Supplied with installed screw down inspection lid

  Note: The gauge sender should be ordered separately and the appropriate hole cut in the tank,
  Dimensions: plus or minus 2% Height dimension includes connectors

  Other Details:

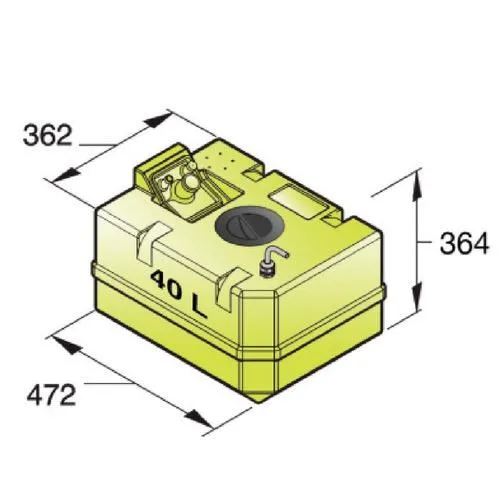

  Type	Tank Capacity	Dimensions (Length x Width x Height) (mm)
  WTANK40C	40	472 x 362 x 364
  WTANK60C	60	682 x 362 x 364
  WTANK80C	80	892 x 362 x 364
